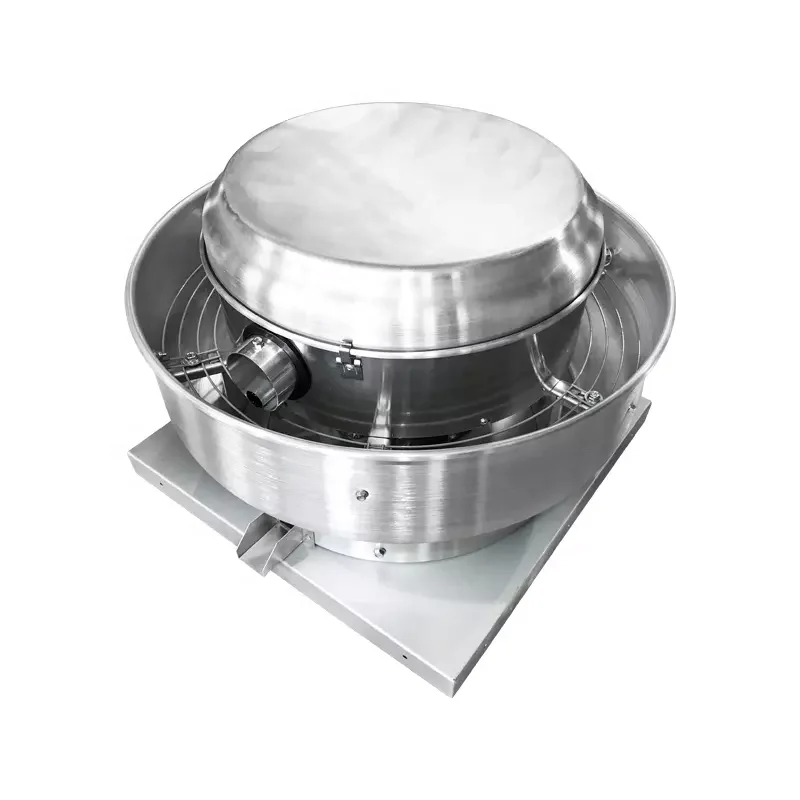

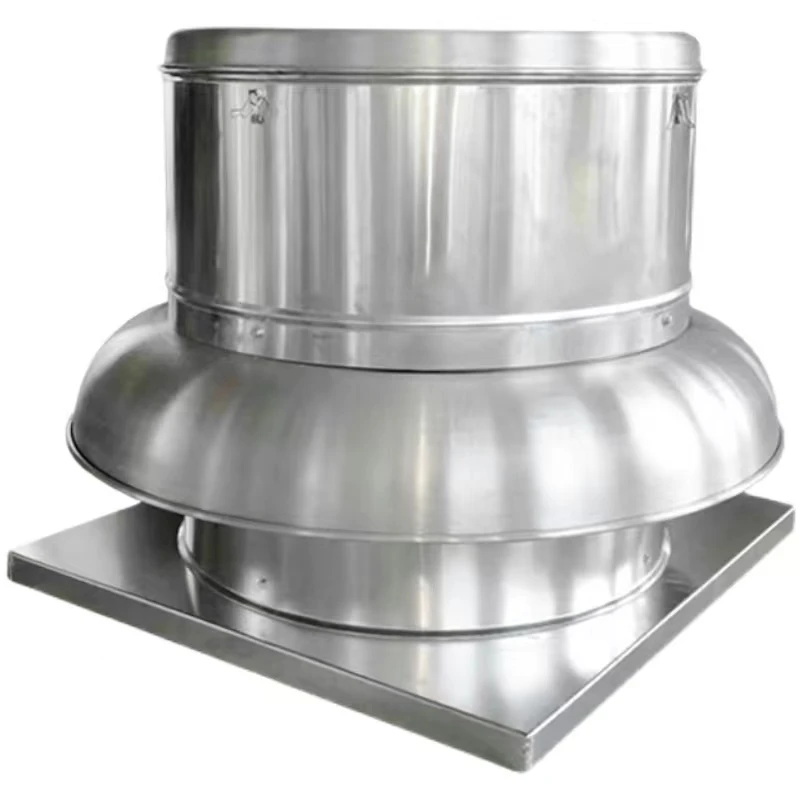

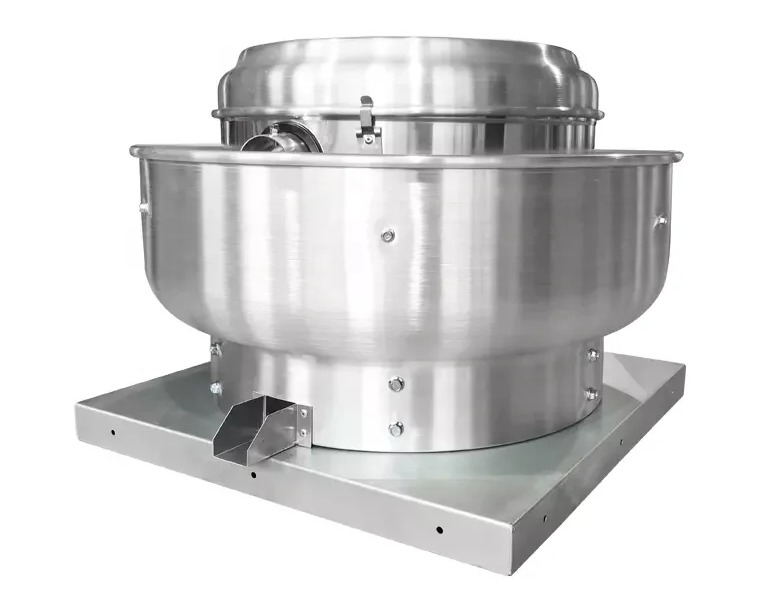

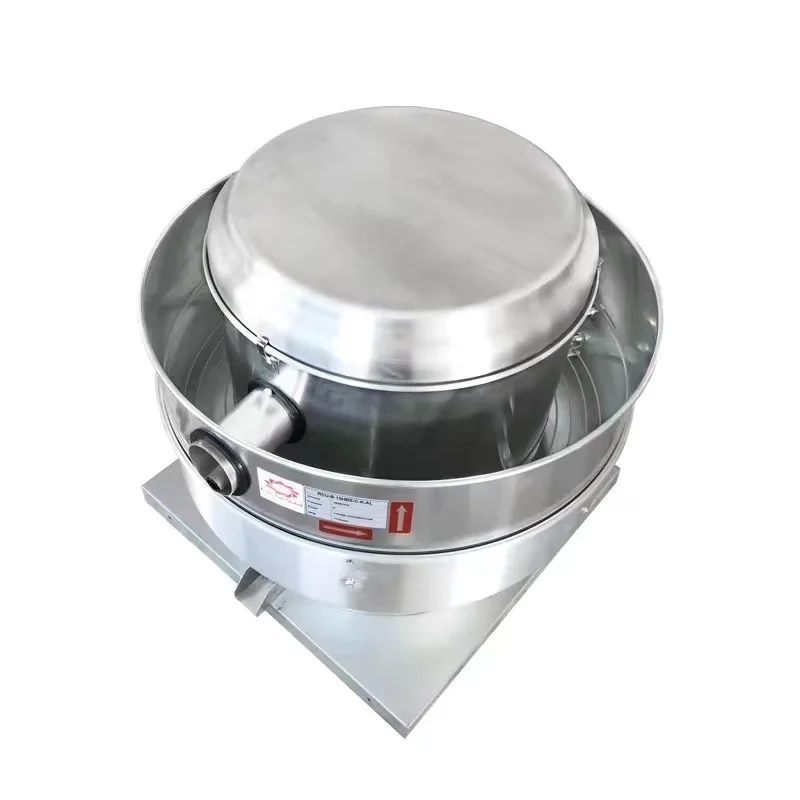

RCU Fan Upblast Roof Fans are designed to provide efficient and reliable operation for commercial and kitchen exhaust purpose. Our products are manufactured with state of the srt laser, forming, spinning and welding equipment and ensure our quality control testing to ensure trouble free start-up. Our roof blowers are including industry leading design features to ensure your ventilation equipment has the latest technologies available.
| Model Type | Diameter Blades (mm) | Power | Speed | Air flow (CFM) |
| (RPM) | ||||
| RCU05 | 280 | 0.5HP | 1720 | 1240 |
| RCU08 | 315 | 0.5HP | 1720 | 2600 |
| RCU10 | 355 | 0.75HP | 1400 | 3100 |
| 355 | 1.0HP | 1720 | 3800 | |
| RCU14 | 400 | 1.0HP | 1400 | 4000 |
| 400 | 1.5HP | 1720 | 4800 | |
| RCU16 | 455 | 1.5HP | 1300 | 5200 |
| 455 | 2.0HP | 1720 | 5800 | |
| RCU18 | 500 | 1.5HP | 1000 | 6000 |
| 500 | 2.0HP | 1130 | 7400 | |
| 500 | 2.0HP | 1300 | 8000 | |
| RCU28 | 710 | 3.0HP | 750 | 11000 |
| 710 | 5.5HP | 1000 | 14000 | |
| 710 | 7.5HP | 1120 | 17000 | |
| RCU32 | 800 | 5.5HP | 750 | 12500 |
| 800 | 7.5HP | 1000 | 16500 | |
| 800 | 10HP | 1120 | 19000 |
