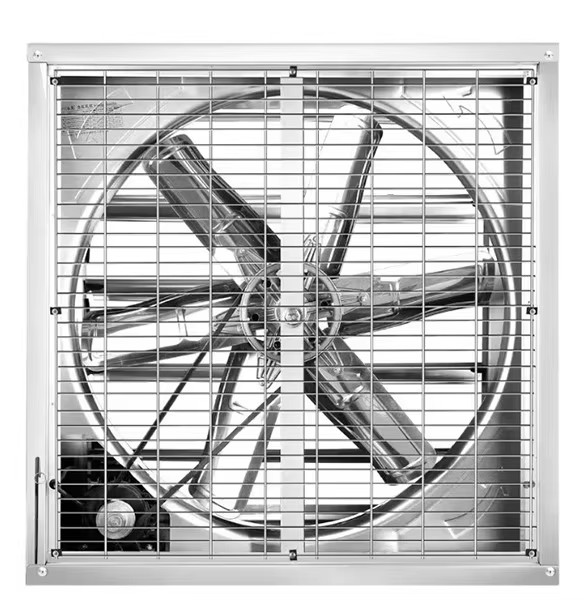

New environmentally friendly and energy-saving plant ventilation cooling equipment, because of the exhaust fan's large amount of ventilation, ventilation and cooling effect is good, low noise, the installation of the use of the site of the smallest destructive, cheap to buy, wide range of applications, Long life.
Features & Advantages
♦Thick Stainless Steel Shell
♦ Extra stability
♦ Large air volume & strong ventilation
♦ Low noise
♦ Anti corrosion and anti rust
♦ Low energy consumption
♦ Suitable for large indoors
♦ Wide applications
Specifications & Data Sheet
| Model Type | Drive | Diameter Blades (mm) |
Blades rotational speed (rpm) |
Motor rotational speed (rpm) |
Air flow (m³/h) | Total pressure (Pa) | Noise Decibels (dB) | Import power |
Dimension (H*W*T) mm |
| 1530 | Belt | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 1530*1530*400 |
| 1380 | Belt | 1270 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 1380*1380*400 |
| 1220 | Belt | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 1220*1220*400 |
| 1100 | Belt | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 1100*1100*400 |
| 1000 | Belt | 900 | 610 | 1400 | 25000 | 70 | ≤70 | 750 | 1000*1000*400 |
| 900 | Belt | 750 | 630 | 1400 | 22000 | 65 | ≤65 | 370 | 900*900 *400 |
| 800 | Belt | 710 | 650 | 1400 | 18000 | 60 | ≤60 | 370 | 800*800 *400 |
| 600 | Direct | 500 | 1400 | 1400 | 5700 | 55 | ≤70 | 250 | 600*600 *320 |
| 500 | Direct | 400 | 1400 | 1400 | 5000 | 55 | ≤70 | 250 | 500*500 *320 |
| 400 | Direct | 300 | 1400 | 1400 | 4500 | 55 | ≤70 | 250 | 400*400 *320 |
