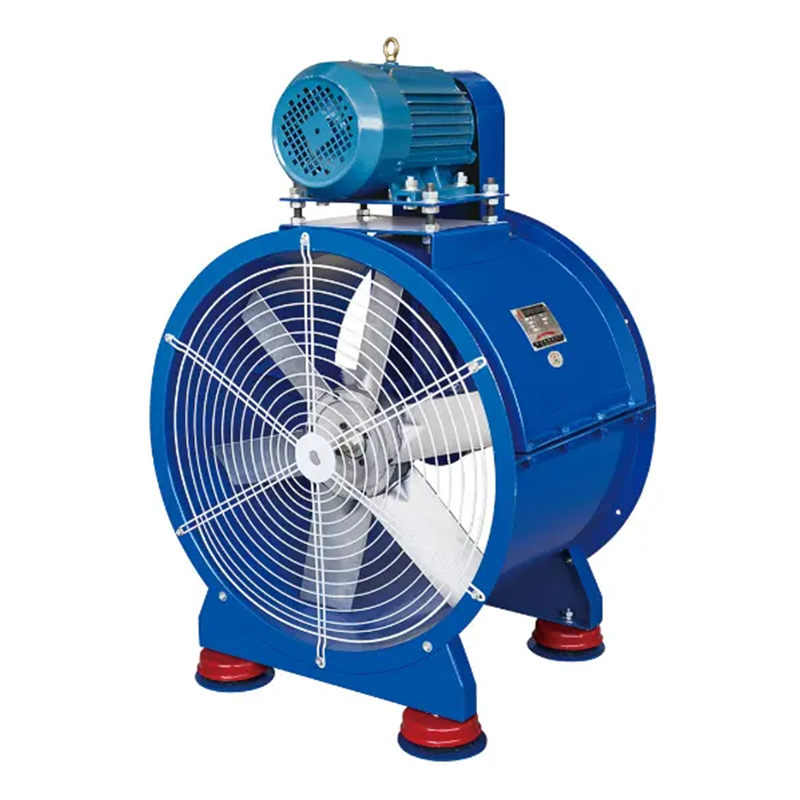

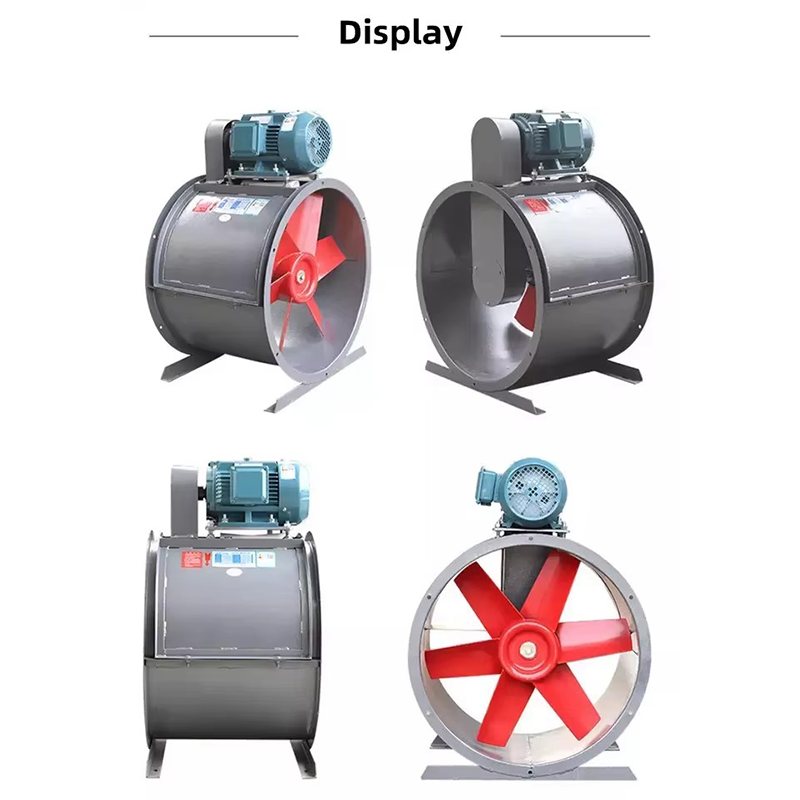

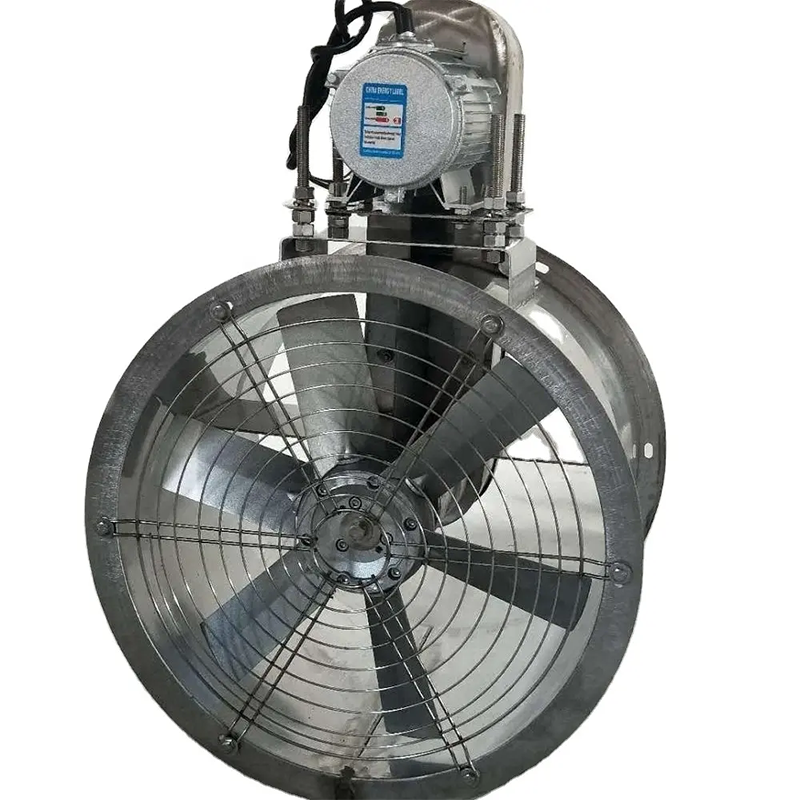

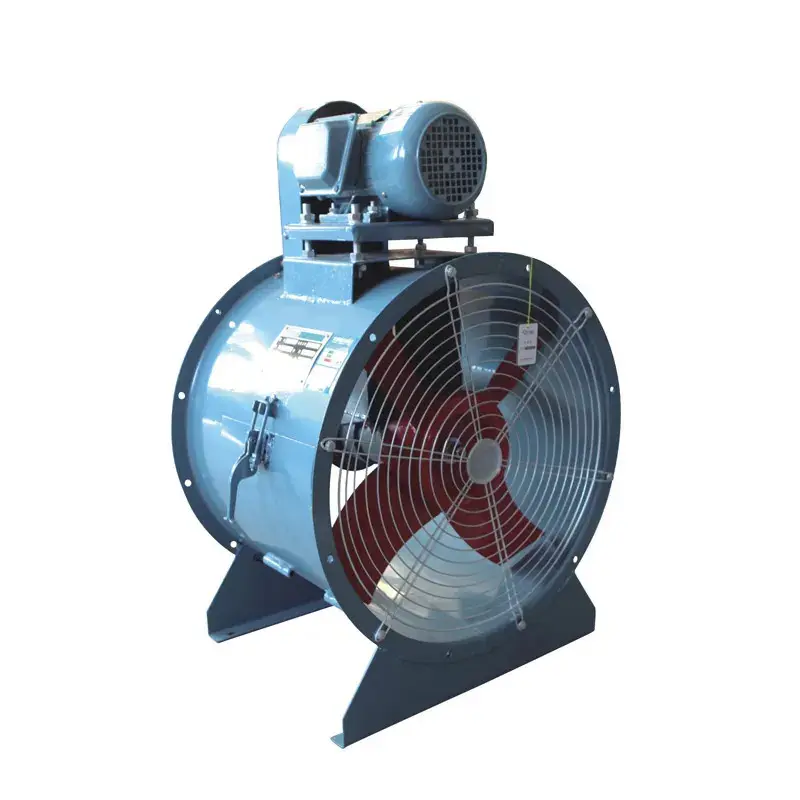

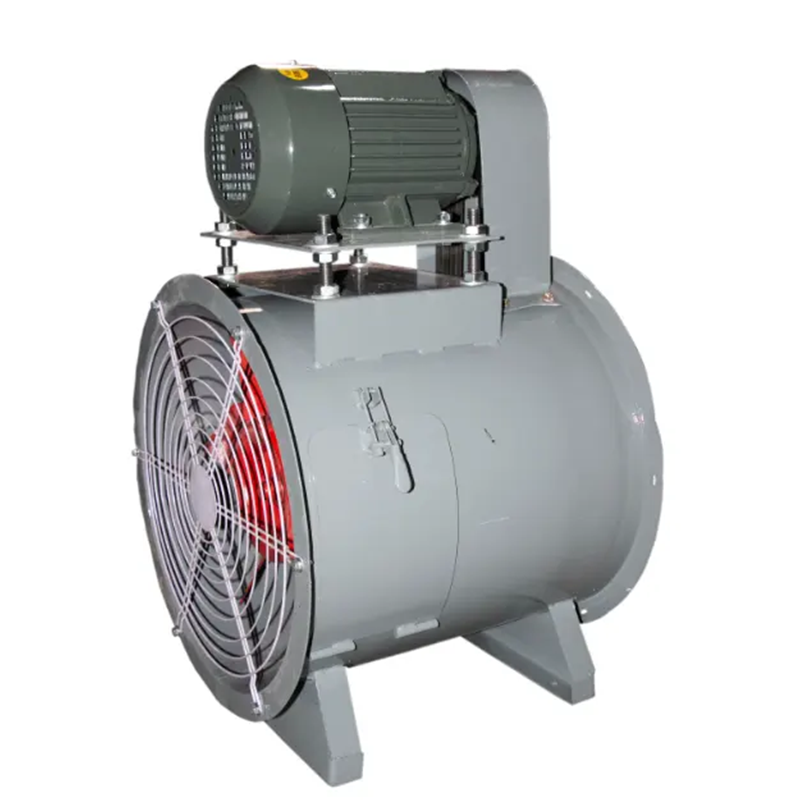

Belt Driven Axial Flow Fan

Home >  Products >  Axial Flow Fan >  Belt Driven Axial Flow Fan

Belt Driven Axial Fans

  • Overview
  • Recommended Products




Belt-driven axial fans are ideal for environments where the air may contain dust or moisture, operate at high temperatures, or require adjustable fan speeds.

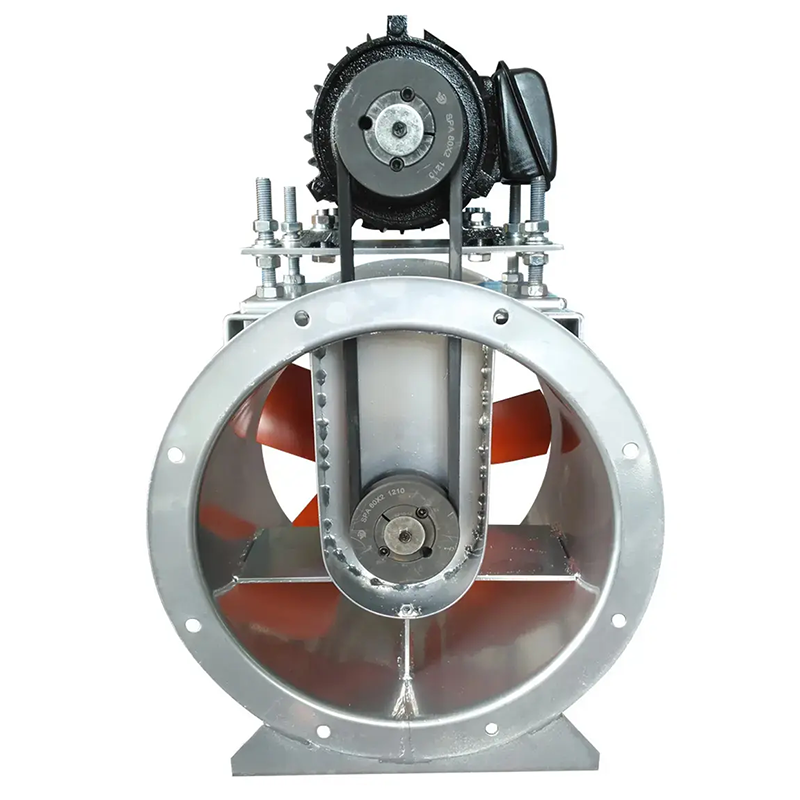

The impeller is directly keyed onto the bearing unit shaft and driven by belts enclosed within a tunnel, which isolates them from the air stream. External lubrication points are easily accessible for maintenance. The motor is mounted on an adjustable platform.



Our innovative design features the motor positioned outside the casing, ensuring both safety and efficiency. The drive bearing and belts are housed within a tunnel, further enhancing performance by isolating them from the airstream. The impeller is mounted on a precision-machined shaft, with the front bearing strategically placed behind the hub of the impeller to shield it from direct airflow. This design can withstand maximum air temperatures of up to 110℃.



For a comprehensive solution, we offer a range of ancillaries such as spigot flanges, inlet bell mouths , casing feet, and flexible connections. Additionally , we can customize non-standard arrangements or special fans to providing tailored solutions that ensure optional performance and reliability.

 Specification

MODEL Power(KW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Noise dB(A)
3C 0.37 380 1400 1750 30 ≤67
3.5C 0.55 380 1400 2500 40 ≤68
4C 0.75 380 1600 4148 90 ≤74
0.55 380 1400 3500 79 ≤73
5C 1.5 380 1600 8460 128 ≤84
1.1 380 1450 7867 100 ≤80
2.2 380 1800 9517 162 ≤85
6C 1.5 380 1200 11590 123 ≤79
2.2 380 1450 14000 179 ≤84
3 380 1600 15448 217 ≤85
7C 3 380 1450 19000 226 ≤89
8C 4 380 1450 24500 221 ≤91
9C 5.5 380 1450 31421 215 ≤92
10C 4 380 960 27755 134 ≤87
12C 7.5 380 960 44731 260 ≤93
