Introduce:

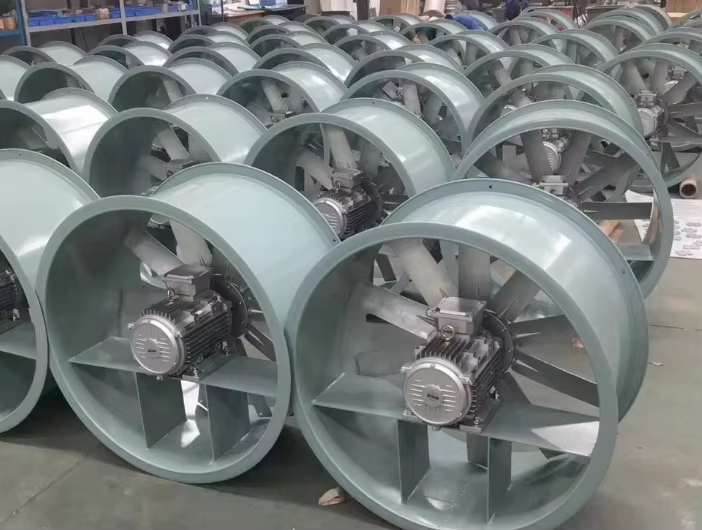

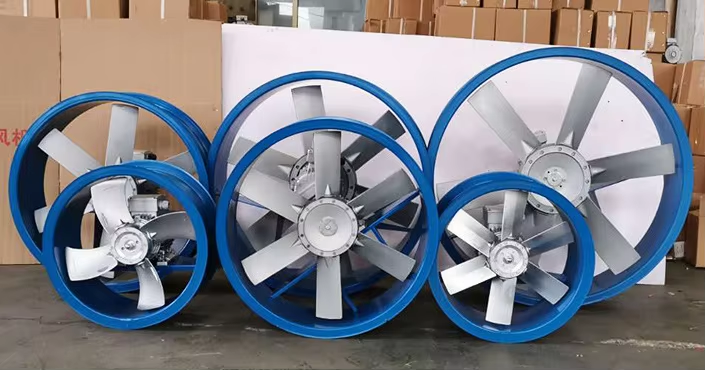

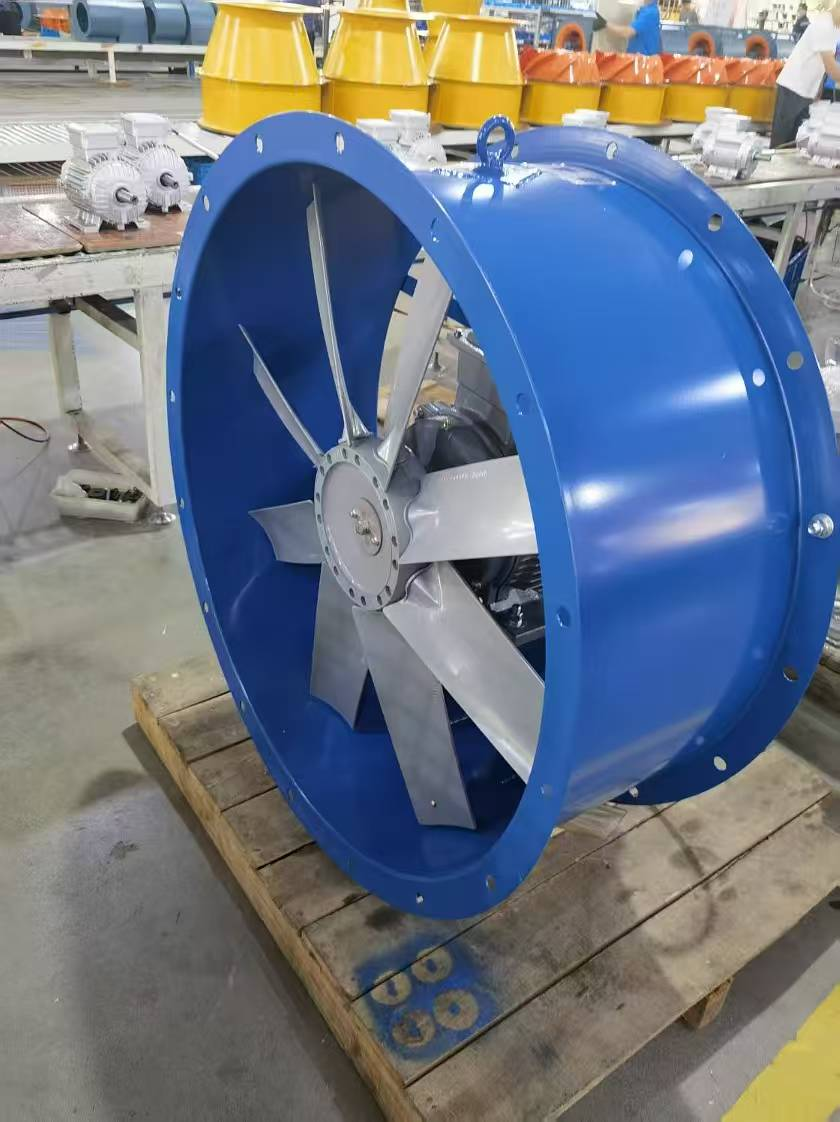

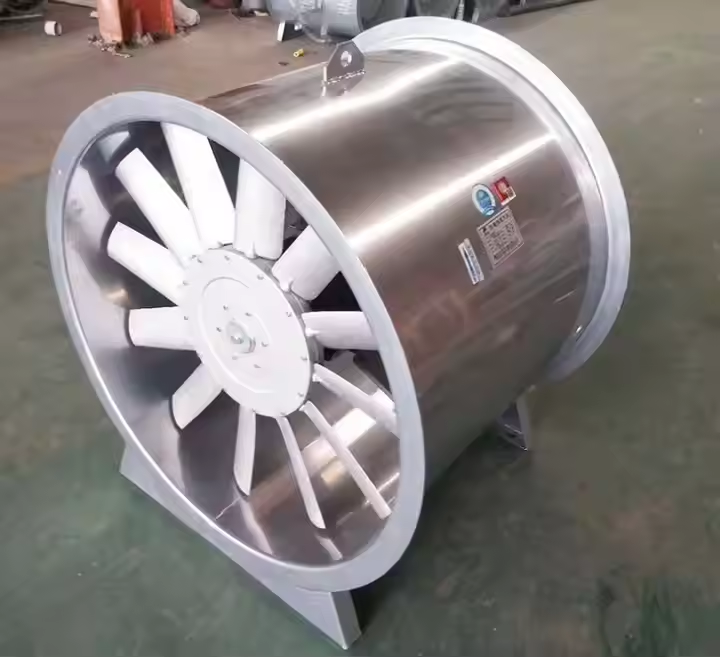

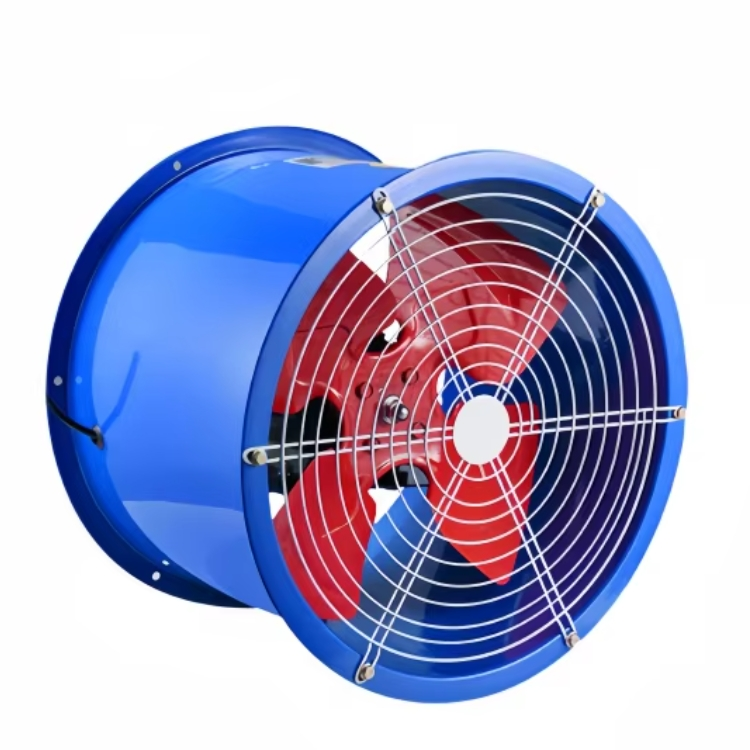

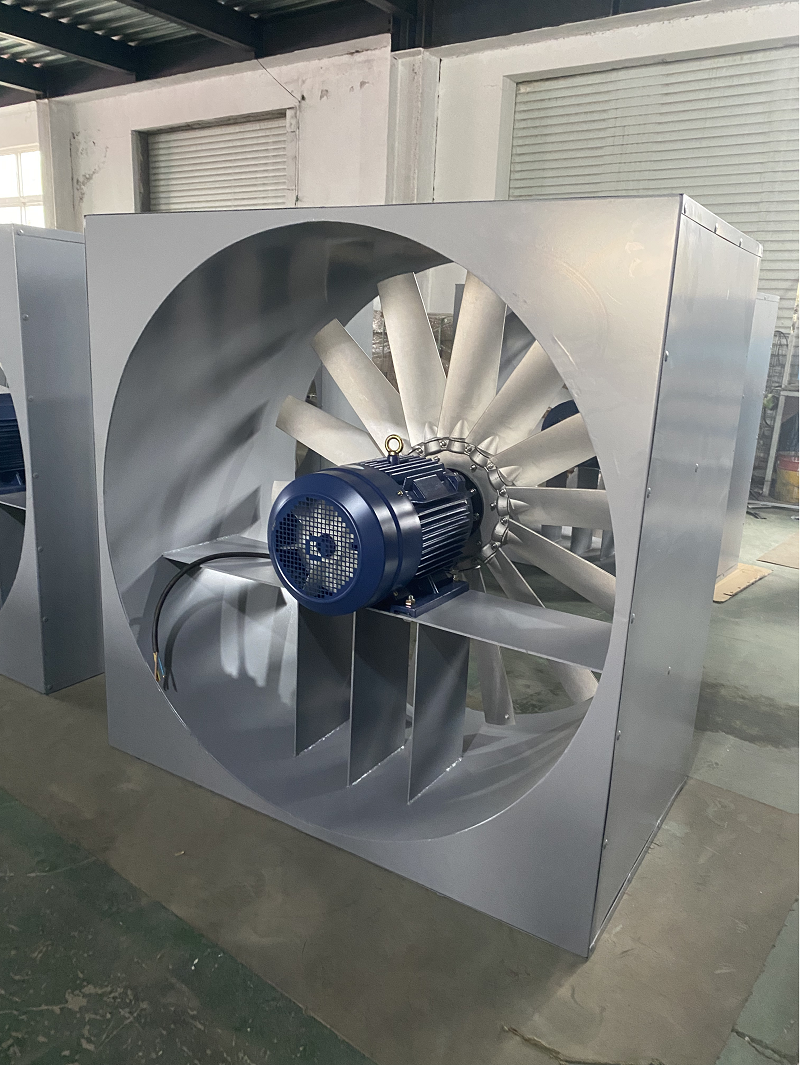

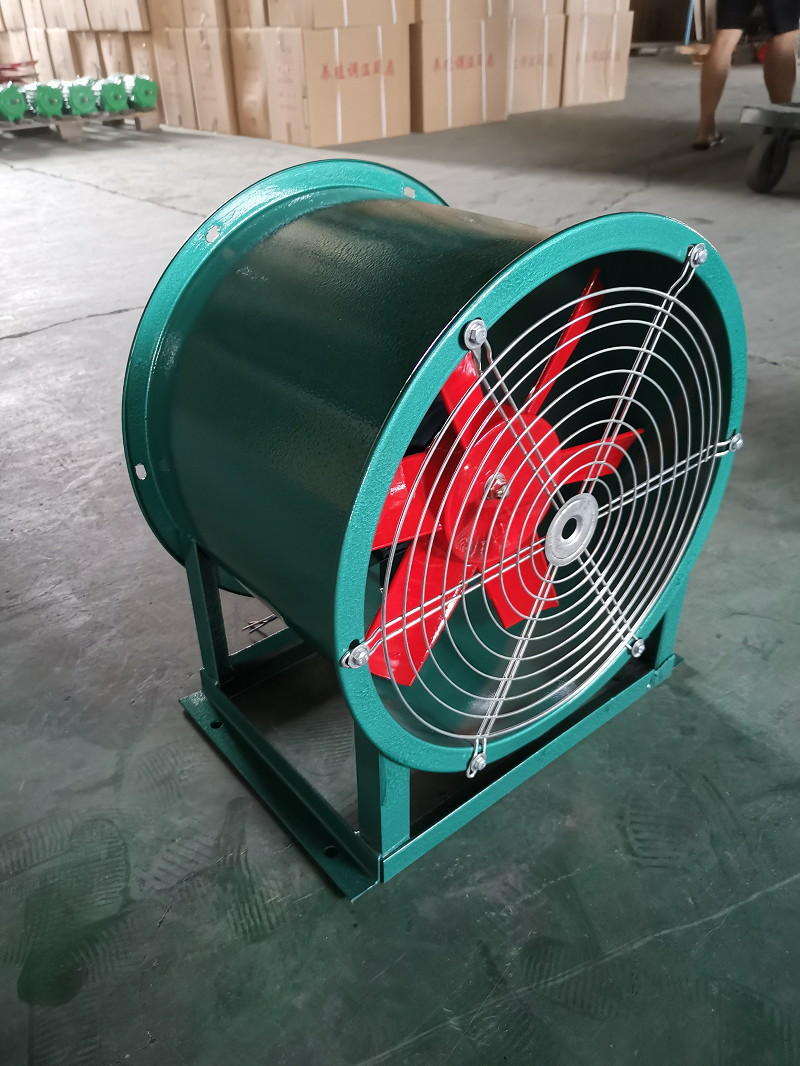

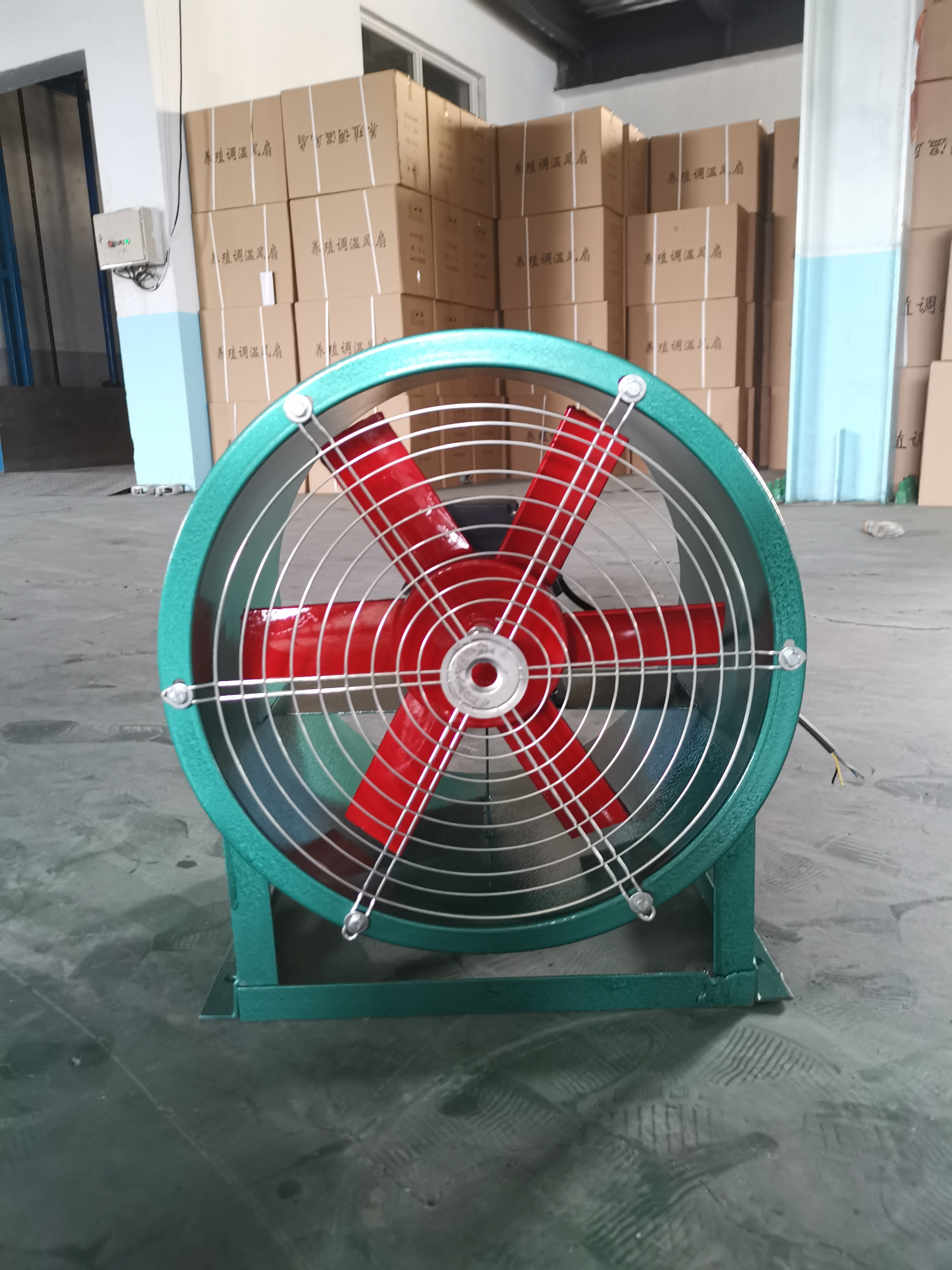

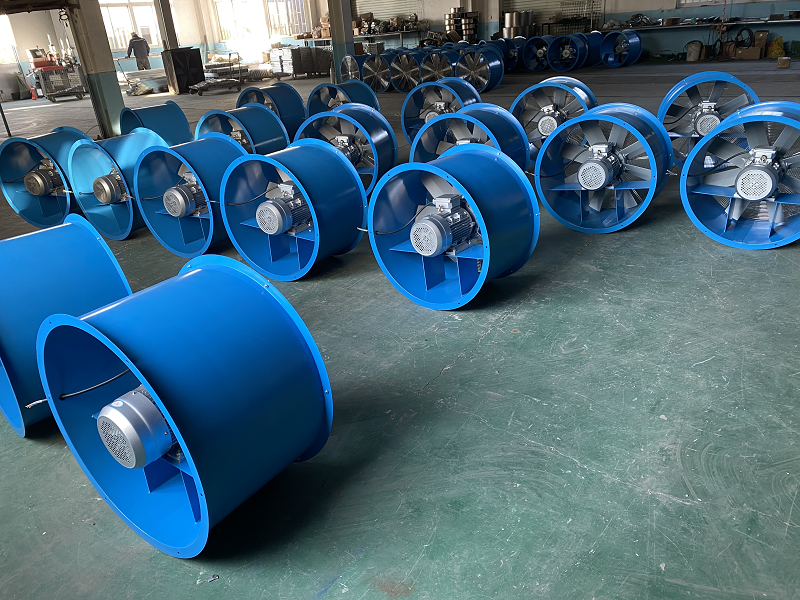

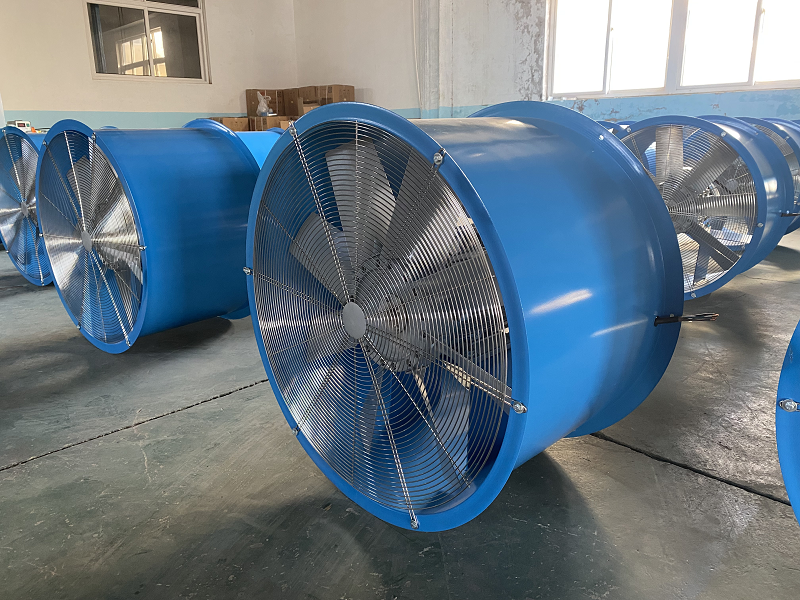

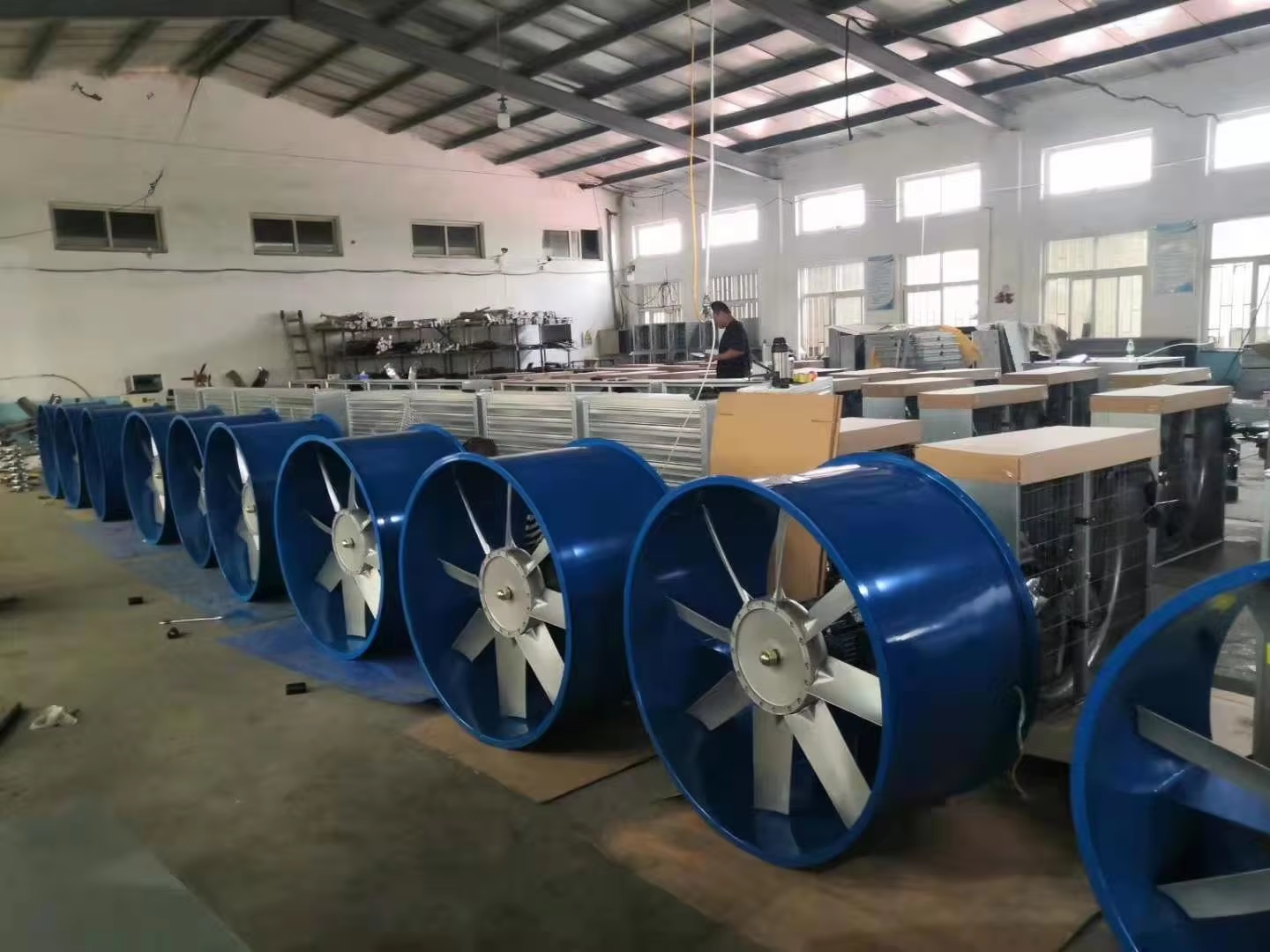

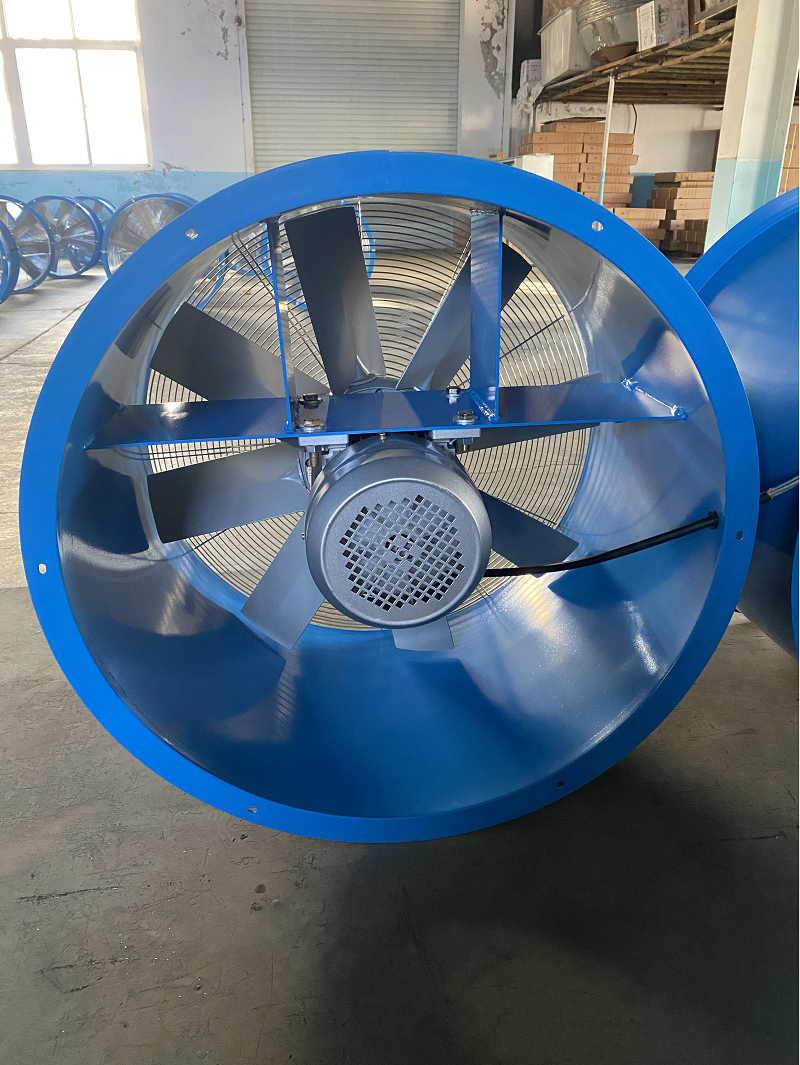

Axial fan is usually used in places with high flow requirements and low pressure requirements.CBF products are applicable in places (Zone 1 and Zone 2) with explosive mixtures of Class II A, B and T4 group and below. The series product should be operated at AC 50Hz, and 220/380V in a place without heavy corrosion and significant dust exposure. The CBF series is composed of an explosion-proof motor, blades, and air ducts. Specifically, blades are formed by aluminum alloy die-casting; the air duct is welded by steel plates and profiles.The supply lead can be wired by steel tube wiring or cable wring. And a grounding screw is provided outside the shell.
Advantage of Axial Flow Fans
Reliable explosion-proof performance
Large air flow
Low noise
Low power consumption
Durable for more than 8 years
Features:
1.Max. Ambient Temp: <130℃
2. Relative humidity: ≤98%
3. Rated voltage: 220V, 220/440V, 220/380/660V, 230/400/690V, 240/415/720V
4. Cooling Method: IC411, Protection Class: IP54/IP55
5. Insulation Class: Class F(120℃), Class H(180℃)

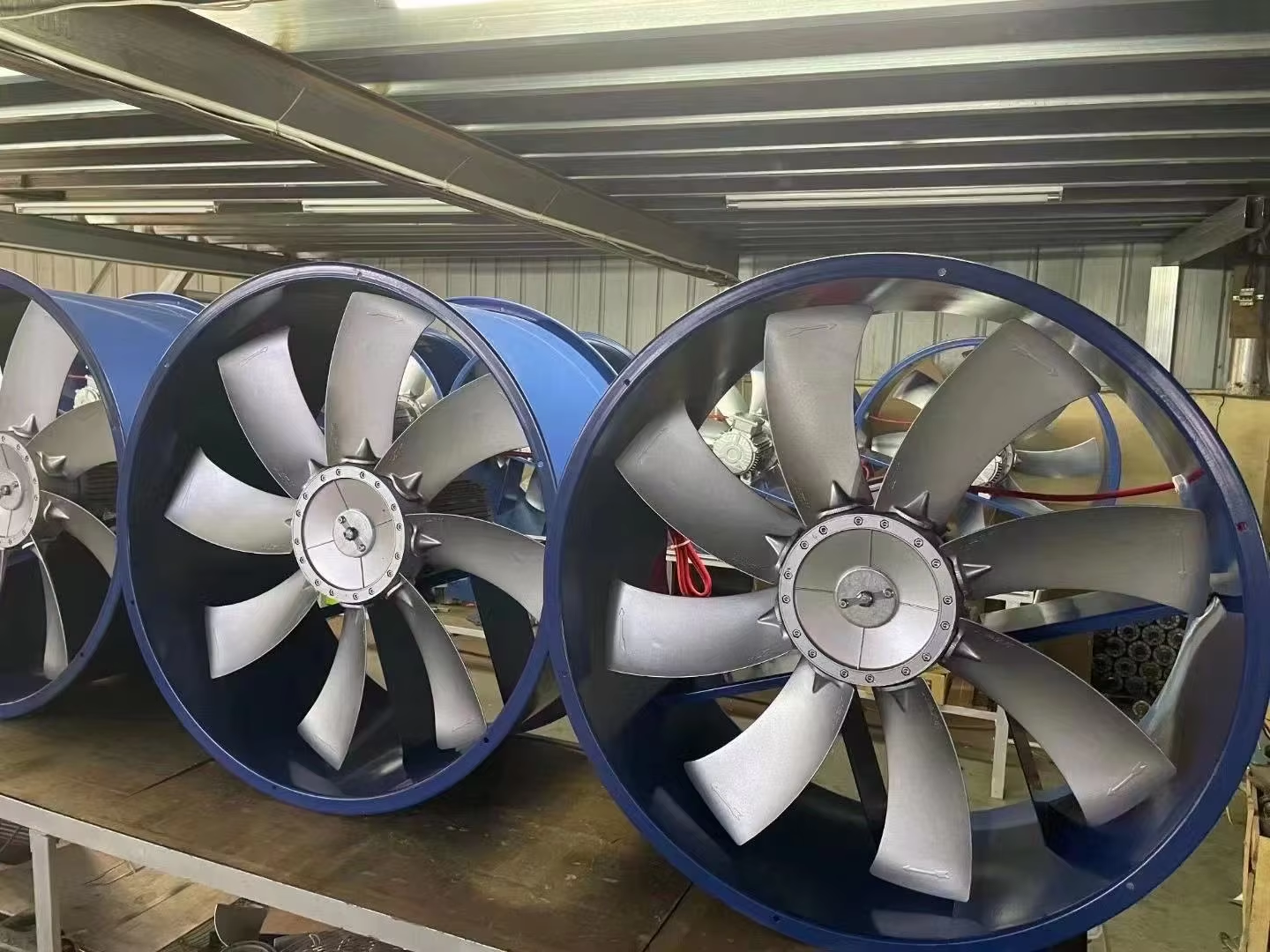

6. Fan Blade: Aluminium/ Stainless steel
7. Motor: Double speed Motor/ Explosion-proof Motor
8. Pipe: Iron Stainless steel
9.Size 200mm~2000mm is feasible.
10.Customized support frameavailable
