General description
Single-phase motor is a fully enclosed single-phase

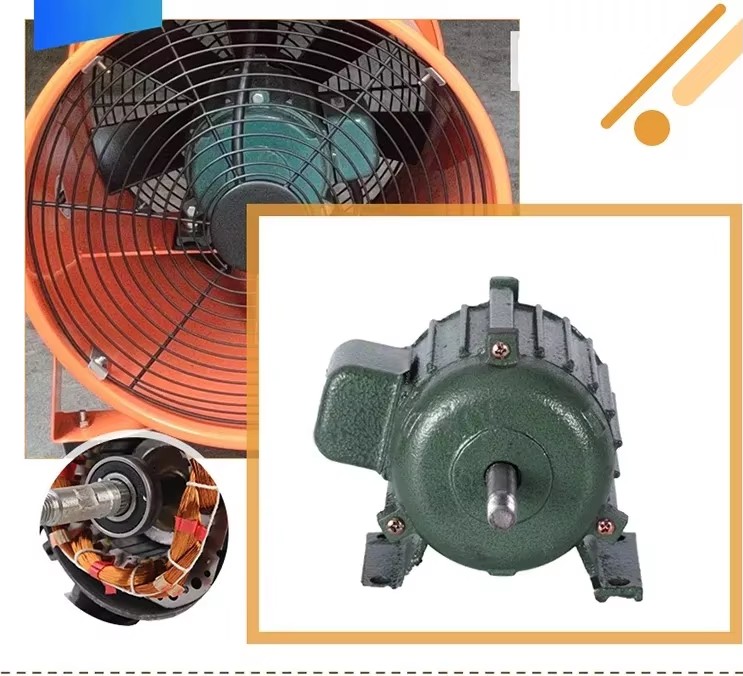

Latest designed three-phase asynchronous motor, with simple structure, reliable performance, easy maintenance, and technical and economic indicators. The product is widely used in air compressors, water pumps, refrigerators, washing machines, medical equipment, woodworking machinery, various agricultural machinery, etc.
Optional functions
1. Power: 0.06-7.5KW or customized;
2. Voltage: 110V 220V 230V 240V;
3. Rated frequency: 50Hz 60Hz;
4. Level: 2 /4 / 6 /8
5. Speed: 3000/1500/1000 r/min
6. Ambient temperature: -10℃≤0≤40℃
7. Working system: continuous (S1);
8. Insulation grade: B, F;
9. Protection grade: IP44, IP54;
10. Base material: cast iron body, aluminum body
11. Cooling method: IC411 standard;
12. Packing: 56-132 frame is packed by carton and wooden box
13. Certification: CE, CCC, ISO9001:2008
