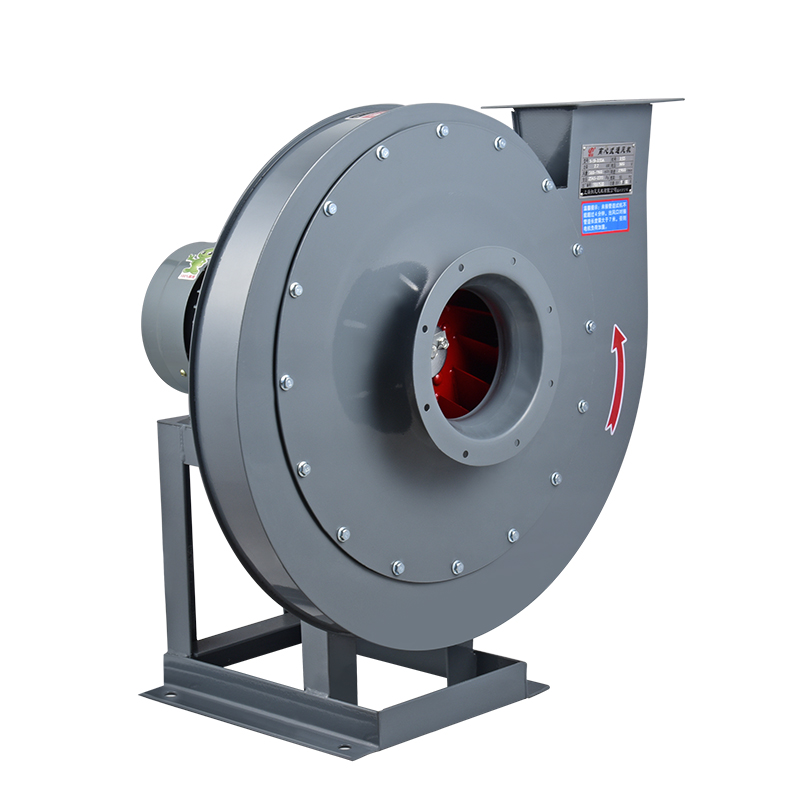

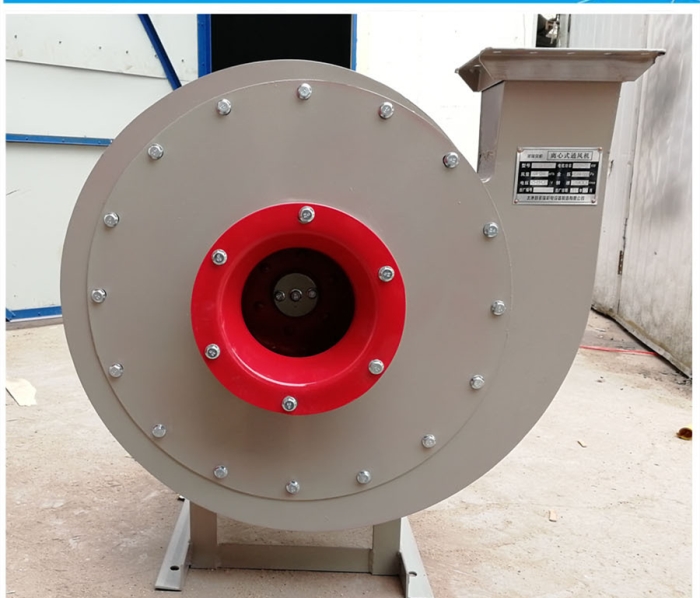

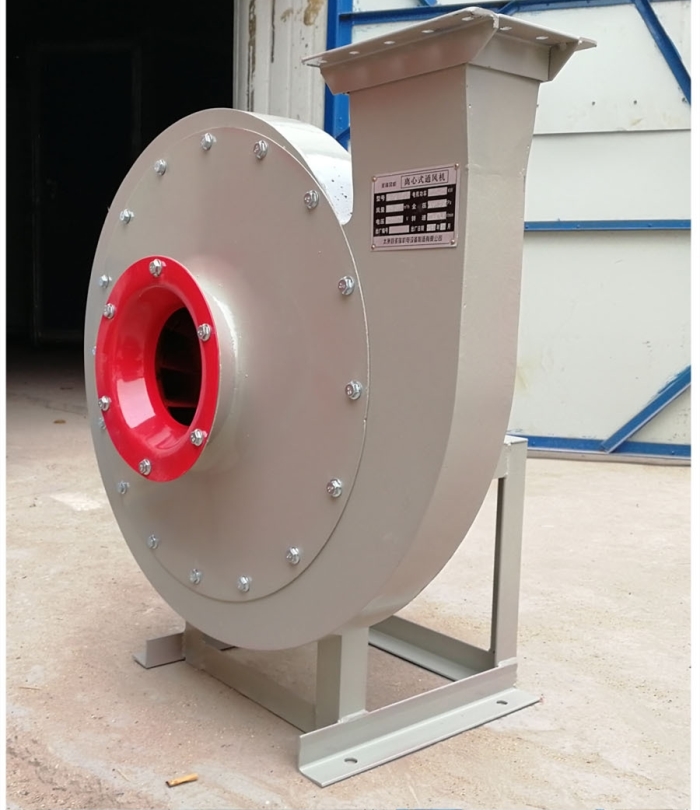

This fan is mainly composed of impeller, casing, air inlet, frame(B3 model), and other components equipped with a direct connected motor.
1.Impeller. Made of 16 pieces of carbon steel with straight forward blades, the front cover and blades of the impeller are molded in one go.After the impeller is formed,it is strictly balanced and calibrated
2. Housing: Made of carbon steel material, the volute type fan is compact and flexible, saving space,and suitable for various occasions.
3.Air inlet carbon steel one-time convergent streamline overall structure, installed on the side of the fan, and fixed on the front cover plate with bolts.

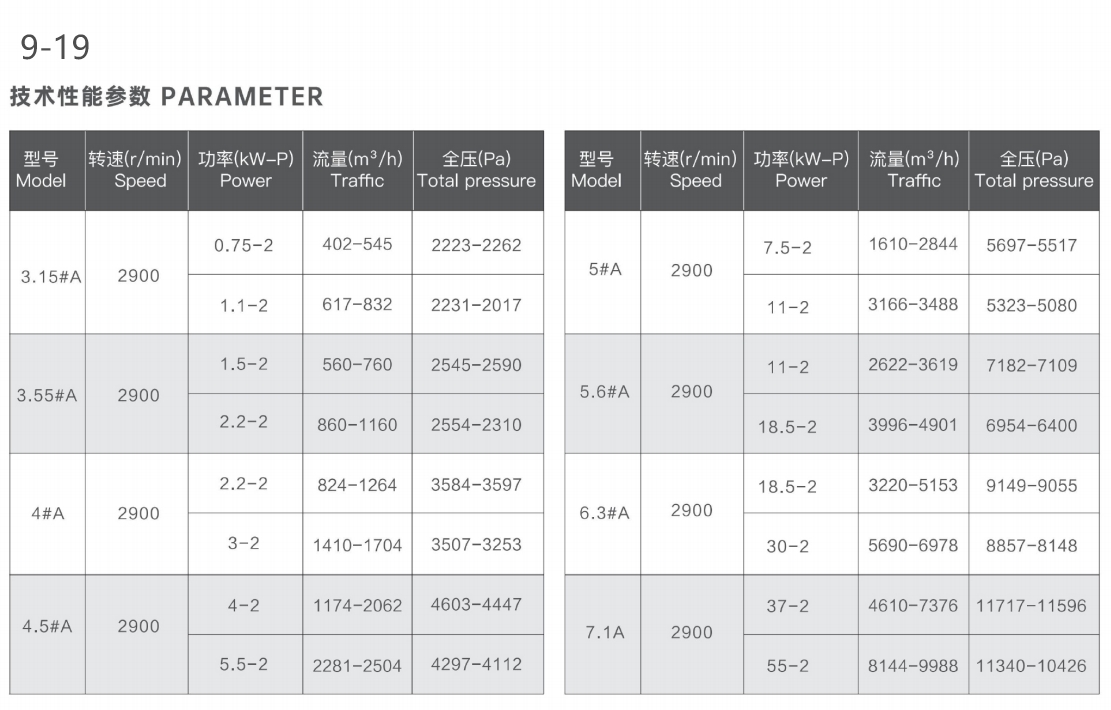

9-19 PARAMETER

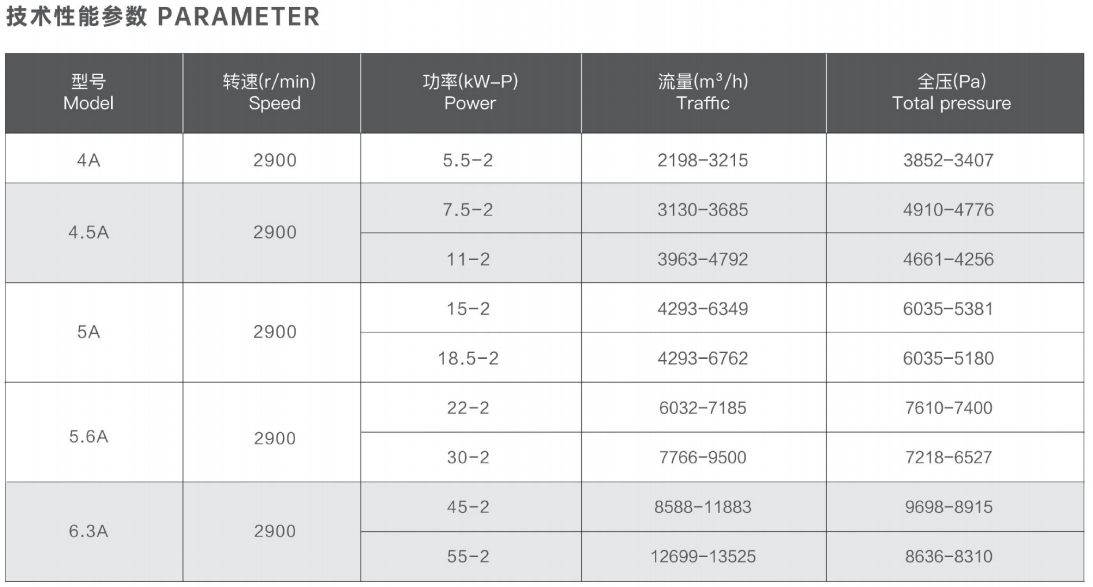

9-26PARAMETER
