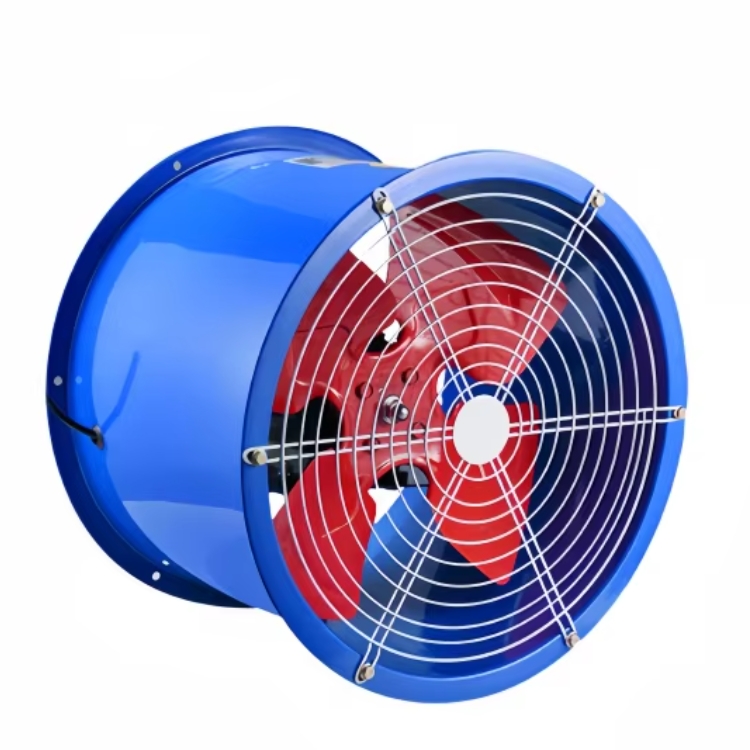

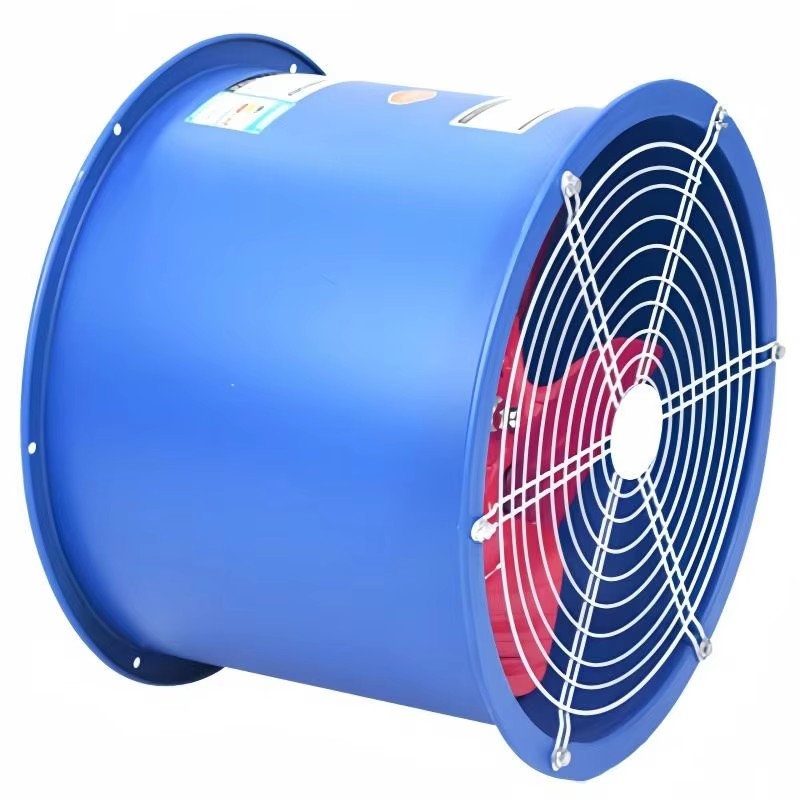

SF series axial flow fan has the advantages of smooth flow surface, smooth operation, high efficiency, low noise, and low energy consumption. The SF series fans are divided into four types according to usage requirements: pipeline type, fixed type, wall mounted, and post type, with standard models based on impeller diameter. This series widely used for wall exhaust, post air supply, and pipeline ventilation in industrial and mining enterprises and civil buildings. It is also applied to ventilation and air conditioning systems in workplaces and warehouses such as chemical, light industry, food, medicine, metallurgy, power plants, transportation, etc. (The temperature shall not exceed 60 ℃)
Model Type |
Power (kW-P) |
Speed (rpm/min) |
Voltage (V) |
Traffic (m³/h) |
Total pressure (Pa) |
Dimension (H*W*T) cm |
Net weight (kg) |
||
2-2 |
0.12-2 |
2800 |
220/380 |
1300 |
140 |
27.5 |
27.5 |
28 |
7 |
2-4 |
0.06-4 |
1450 |
220/380 |
600 |
23 |
27.5 |
27.5 |
28 |
7 |
2.5-2 |
0.25-2 |
2800 |
220/380 |
2100 |
215 |
33 |
33 |
28 |
8 |
2.5-4 |
0.09-4 |
1450 |
220/380 |
1000 |
35 |
33 |
33 |
28 |
8 |
3-2 |
0.37-2 |
2800 |
220/380 |
3000 |
230 |
37 |
37 |
28 |
9 |
3-4 |
0.12-4 |
1450 |
220/380 |
2000 |
59 |
37 |
37 |
28 |
9 |
3.5-2 |
0.75-2 |
2800 |
220/380 |
6000 |
260 |
/ |
/ |
/ |
/ |
3.5-4 |
0.25-4 |
1450 |
220/380 |
3000 |
78 |
/ |
/ |
/ |
/ |
4-2 |
1.5-2 |
2800 |
220/380 |
11000 |
320 |
47 |
47 |
37 |
17 |
4-4 |
0.55-4 |
1450 |
220/380 |
5300 |
167 |
47 |
47 |
37 |
14 |
5-4 |
0.75-4 |
1450 |
220/380 |
9300 |
200 |
57 |
57 |
35 |
16 |
6-4 |
2.2-4 |
1450 |
220/380 |
18700 |
300 |
67 |
67 |
47 |
31 |
7-4 |
3-4 |
1450 |
220/380 |
23000 |
350 |
77 |
77 |
56 |
52 |
8-4 |
4-4 |
1450 |
220/380 |
25000 |
380 |
85 |
85 |
56 |
64 |
9-4 |
5.5-4 |
1450 |
220/380 |
33000 |
400 |
/ |
/ |
/ |
/ |
10-4 |
7.5-4 |
1450 |
220/380 |
48000 |
400 |
/ |
/ |
/ |
/ |
Features & Advantages
*All-copper motor
*Low noise operation
*Low energy consumption
*Safety and hygiene
*Flexible, multi-purpose convenient and
widely used
*Solve the ventilation problems if various
closed scene
|

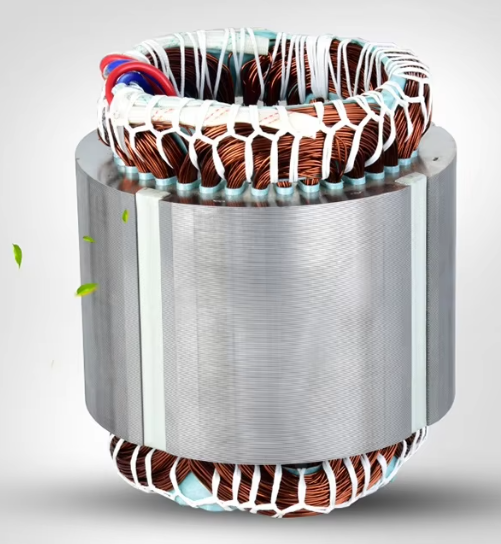

Copper Core Motor Longer motor life, efficient core power, low heat ratio |

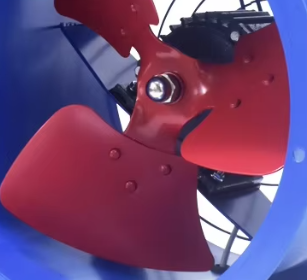

High Quality Steel Plate Blade Reinforced blades, stamped from high-quality steel plate.High strength, special twist arc design, large air volume |
|
|
|

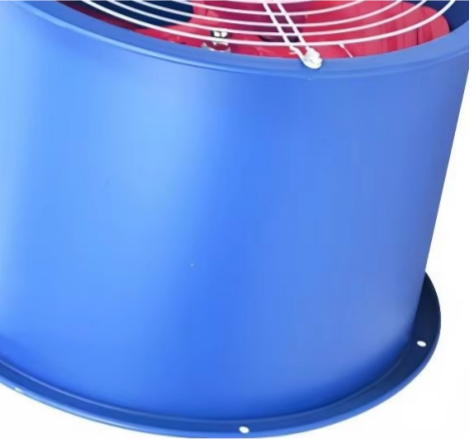

Overall Smearing Treatment The surface of the casing and impeller is sprayed with advanced process lines, with soft and bright colors and lasting unchanged |

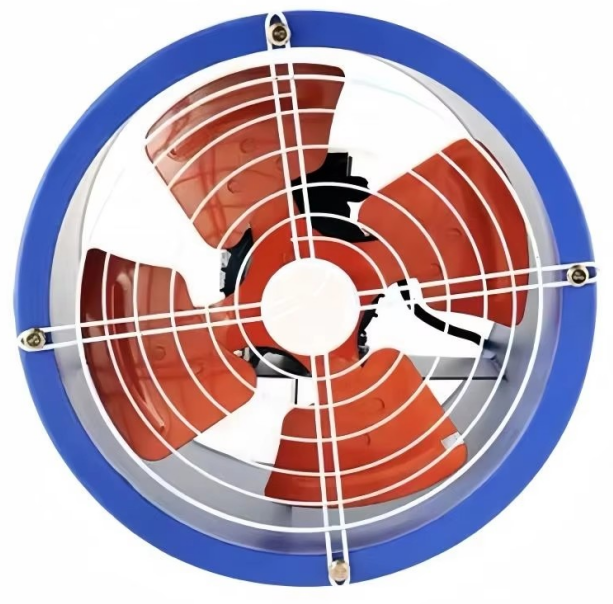

Strong Protective Net The high-quality metal mesh cover is thickened, which is more firm and durable to prevent foreign objects from entering and effectively avoid accidents |
|
|
|

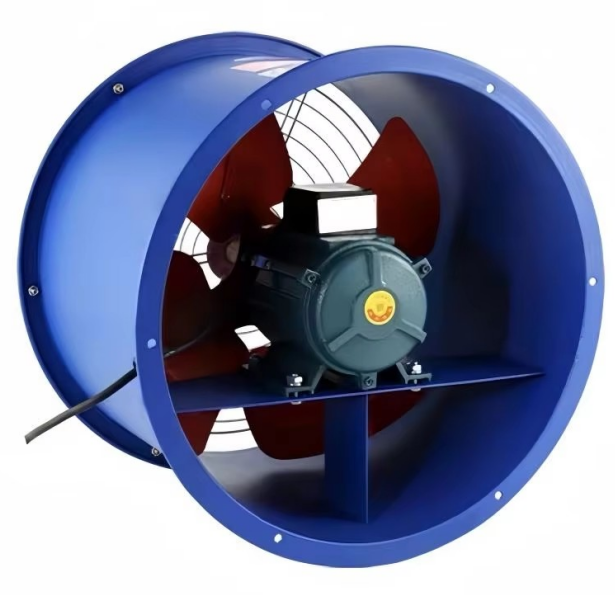

Simple and Beautiful Design High-speed motor lubrication performance, smooth operation.Energy efficient and effectively reduce noise |

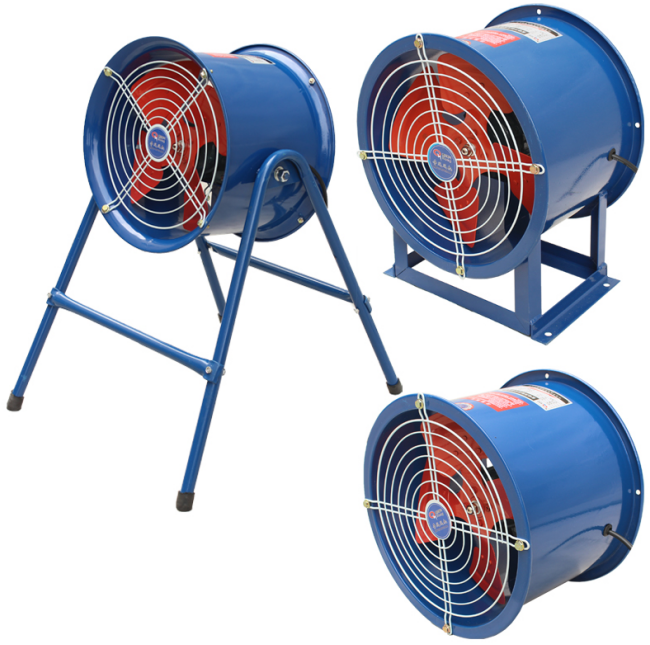

Various Types for Different Scene Pipeline type suitable for installation in a pipe or in a wall , post type and fixed type are suitable for use on the ground with large space |
|
|
