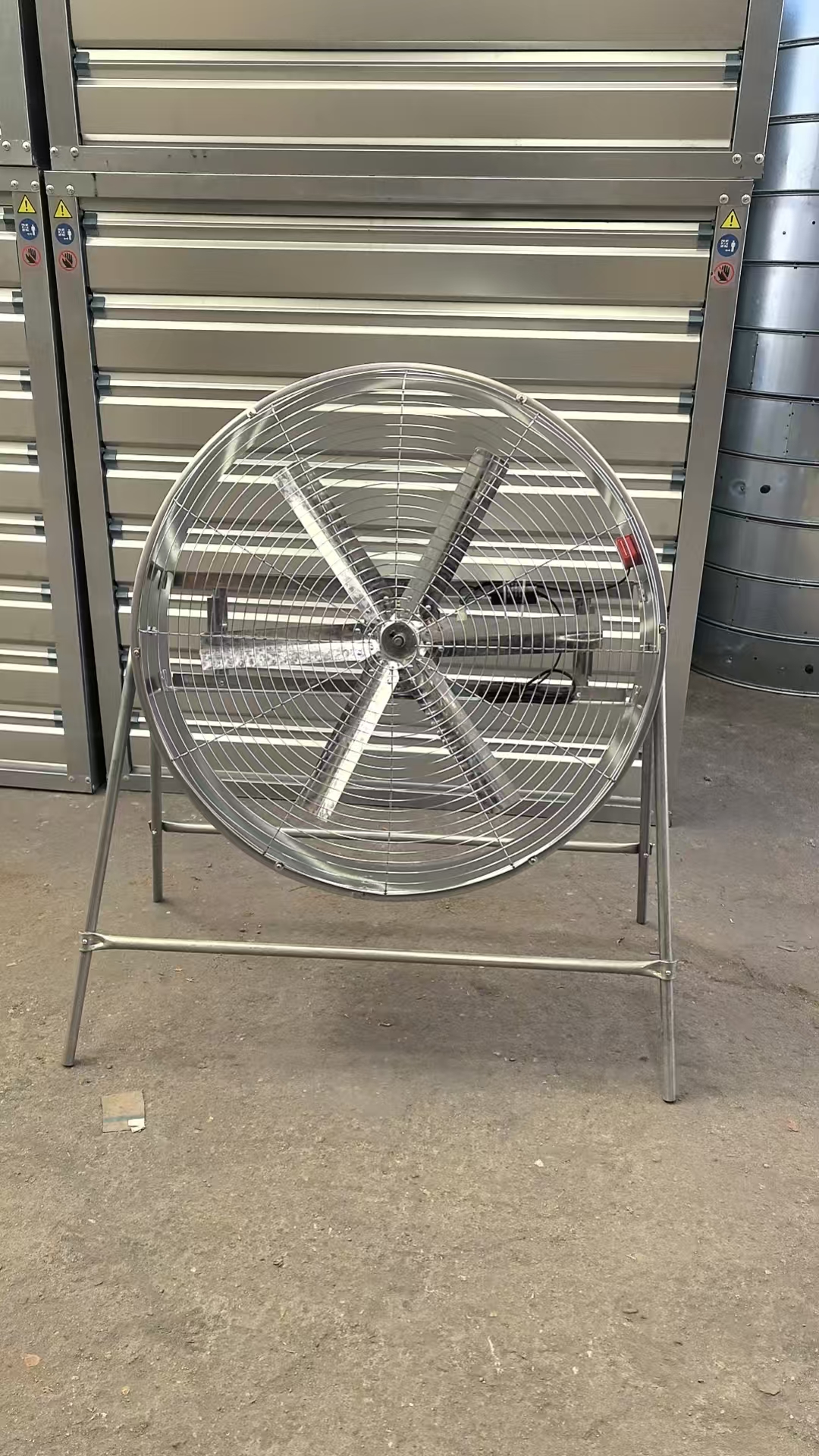

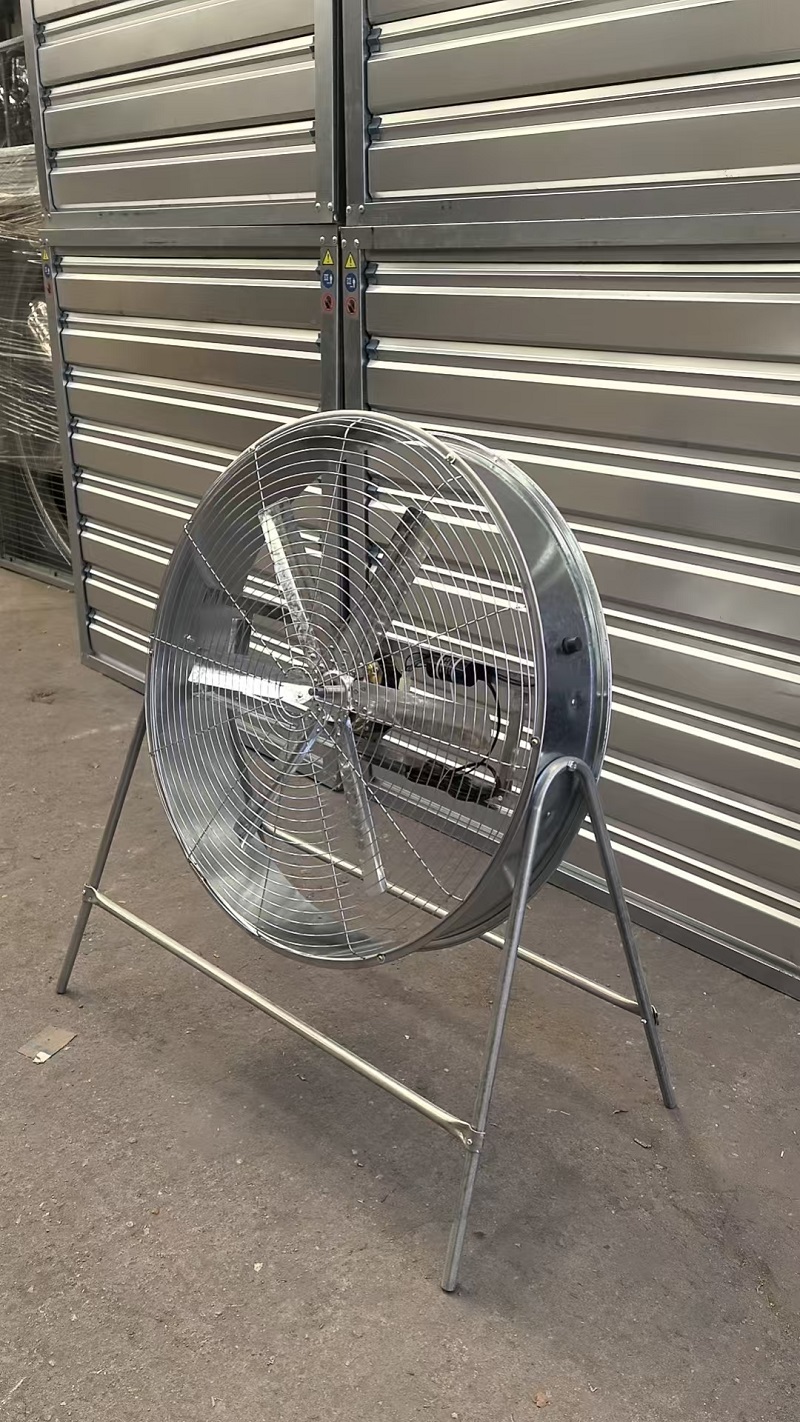

Winnowingfan is a low-power, low-noise, energy-saving fan that starts with controlling the sound source and improving the flow efficiency. It is equipped with a well-designed overall structure of the current collector casing and low-noise asynchronous motor. Therefore, it has the characteristics of smooth operation, low noise, high efficiency, and energy saving. It is widely used for ventilation and air supply in industrial and mining enterprises, civil buildings, metallurgy, power stations, and other workplaces and warehouses.
Model No. |
Speed (r/min) |
Frequency (Hz) |
Specification (mm) |
Input Power (W) |
Air Volume (m³/min) |
Current (A) |
Blade Diameter (mm) |
Voltage (V) |
FA - 50 |
1450 |
50 |
500 |
350 |
98 |
1.58 |
500 |
220 |
FTA - 50 |
1450 |
50 |
500 |
290 |
98 |
0.63 |
500 |
380 |
FA - 60 |
1450 |
50 |
600 |
650 |
170 |
3.20 |
600 |
220 |
FTA - 60 |
1450 |
50 |
600 |
580 |
170 |
1.10 |
600 |
380 |
